  Magnacharger TVS 2300 Style Supercharger Pulleys
for the TVS Supercharger Kit


Magnacharger TVS Style Bolt-On Supercharger Pulleys are available in 6061-T6 Aluminum in 2.70", 2.80", 2.90", 3.00", 3.10", 3.20".

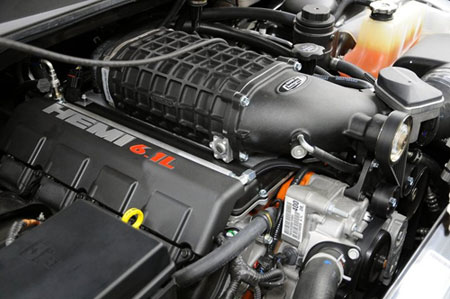

South Florida Pulley HQ is proud to offer our Brand New Magnacharger TVS 2300 Style Supercharger Pulley Lineup for all 2009-2015 Dodge Challenger-Charger RT 5.7L Engine Vehicles and SRT 6.1L Engine Vehicles with these Brand New Supercharger Kits Installed. Our Pulleys are all made of 6061T6 Billet Aluminum and Anodized Clear Finish!

The stock boost for any Magnacharger TVS 2300 Supercharger Kit installed upon any 2009-2015 Dodge Challenger-Charger RT 5.7L Engine Vehicles with a 3.30" Magnacharger Pulley installed on it is only 6 psi at wide open throttle.

- 3.20" pulley: expect 1.0 psi. more boost over stock pulley -Total boost 7.0 psi
- 3.10" pulley: expect 2.0 psi. more boost over stock pulley -Total boost 8.0 psi
- 3.00" pulley: expect 3.0 psi. more boost over stock pulley -Total boost 9.0 psi
- 2.90" pulley: expect 4.0 psi. more boost over stock pulley -Total boost 10.0 psi
- 2.80" pulley: expect 5.0 psi. more boost over stock pulley -Total boost 11.0 psi
- 2.70" pulley: expect 6.0 psi. more boost over stock pulley -Total boost 12.0 psi

PLEASE NOTE: If running Long-Tube Headers, you will lose 2 PSI of Boost and to gain that back, choose a pulley 2 sizes smaller!

The stock boost for any Magnacharger TVS 2300 Supercharger Kit installed upon any 2009-2015 Dodge Challenger-Charger SRT 6.1L Engine Vehicles with a 3.40" Magnacharger Pulley installed on it is only 6 psi at wide open throttle.

- 3.20" pulley: expect 2.0 psi. more boost over stock pulley -Total boost 8.0 psi
- 3.10" pulley: expect 3.0 psi. more boost over stock pulley -Total boost 9.0 psi
- 3.00" pulley: expect 4.0 psi. more boost over stock pulley -Total boost 10.0 psi
- 2.90" pulley: expect 5.0 psi. more boost over stock pulley -Total boost 11.0 psi
- 2.80" pulley: expect 6.0 psi. more boost over stock pulley -Total boost 12.0 psi
- 2.70" pulley: expect 7.0 psi. more boost over stock pulley -Total boost 13.0 psi

PLEASE NOTE: If running Long-Tube Headers, you will lose 2 PSI of Boost and to gain that back, choose a pulley 2 sizes smaller!

WARNING: The only way to install the 2.70" Pulley is to have the Snout Housing machined down for it to fit properly. Some Snout Housing Castings are made differently in sizes and do vary, as to what the smallest pulley you can use without maching. The smallest size we recommend is 2.80", without any machining performed on the Snout Housing casting area.

NOTICE: Installation and Removal of the Stock pulley over to our New Pulley will not require any special tools. Just remove the 4 Bolts and slip the pulley off the Hub Assembly and install the New Pulley onto the Hub Assembly and reinstall the 4 Bolts to secure the pulley ring!

*** Above Boost Increases are Fully Dependant Upon proper Tuning and Modifications, to prevent any and all Knock Retard associated with using Smaller Supercharger Pulleys or Pulley Units!




APPLICATIONS: 2009-2015 Dodge Challenger-Charger RT 5.7L / SRT 6.1L Vehicles
  PRICE


  3.20" Bolt-on TVS Pulley $109.95 shipped


  3.10" Bolt-on TVS Pulley $109.95 shipped


  3.00" Bolt-on TVS Pulley $109.95 shipped


  2.90" Bolt-on TVS Pulley $109.95 shipped


  2.80" Bolt-on TVS Pulley $109.95 shipped


  2.70" Bolt-on TVS Pulley $109.95 shipped
