Magnacharger TVS 1900 Style Supercharger Pulleys
for the TVS Supercharger Kit

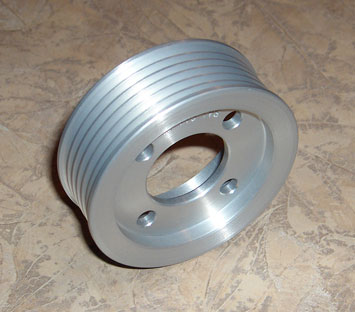

Magnacharger TVS Style Bolt-On 6 Rib Supercharger Pulleys are available in 6061-T6 Aluminum in 2.70", 2.80", 2.90", 3.00", 3.10", 3.20".
South Florida Pulley HQ is proud to offer our Brand New Magnacharger TVS 1900 Style Supercharger Pulley Lineup for all 2008-2015 Chevy/GMC Trucks with these Brand New Jackshaft Supercharger Kits Installed. Our Pulleys are all made of 6061T6 Billet Aluminum and Anodized Clear Finish!
The stock boost for any Magnacharger TVS 1900 Supercharger Kit installed upon any 2008-2015 Chevy/GMC Trucks with a 6.0L / 6.2L V8 Engine Vehicles with a 3.20" Magnacharger Pulley installed on it is only 6 psi at wide open throttle.
- 3.10" pulley: expect 1.0 psi. more boost over stock pulley -Total boost 7.0 psi
- 3.00" pulley: expect 2.0 psi. more boost over stock pulley -Total boost 8.0 psi
- 2.90" pulley: expect 3.0 psi. more boost over stock pulley -Total boost 9.0 psi
- 2.80" pulley: expect 4.0 psi. more boost over stock pulley -Total boost 10.0 psi
- 2.70" pulley: expect 5.0 psi. more boost over stock pulley -Total boost 11.0 psi
WARNING: The only way to install the 2.70" Pulley is to have the Jackshaft Housing machined down for it to fit properly. Some Jackshaft Housing Castings are made differently in sizes and do vary, as to what the smallest pulley you can use without maching. The smallest size we recommend is 2.80", without any machining performed on the jackshaft housing casting area.
NOTICE: Installation and Removal of the Stock pulley over to our New Pulley will not require any special tools. Just remove the 4 Bolts and slip the pulley off the Hub Assembly and install the New Pulley onto the Hub Assembly and reinstall the 4 Bolts to secure the pulley ring!
*** Above Boost Increases are Fully Dependant Upon proper Tuning and Modifications, to prevent any and all Knock Retard associated with using Smaller Supercharger Pulleys or Pulley Units!
2008-2015 Chevy/GMC Trucks with a 6.0L / 6.2L V8 Engines with Magnacharger Jackshaft Application Superchargers
|3.10" Bolt-on TVS Pulley||$109.95 shipped|
|3.00" Bolt-on TVS Pulley||$109.95 shipped|
|2.90" Bolt-on TVS Pulley||$109.95 shipped|
|2.80" Bolt-on TVS Pulley||$109.95 shipped|
|2.70" Bolt-on TVS Pulley||$109.95 shipped|
